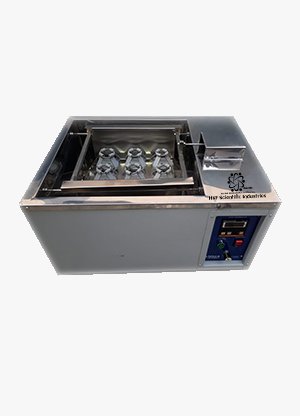

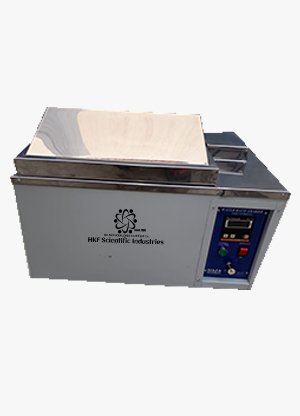

Water Bath Incubator Shaker

Double Walled Water Bath Incubator Shaker (Desktop Model) is a versatile equipment to study on tissue metabolism, Enzymes and Protein Coagulation or other experiments requiring shaking of subject matter at constant speed under controlled temperature environment.
Double Walled Water Bath Incubator Shaker is low cost options for Biotechnology, Clinical, Environmental, Micro Biology, Medical, or Industrial Applications.

Double walled construction.
Inner Tank and lid made of Stainless Steel (SS-304 grade).
Outer chamber is made of Mild Steel duly powder coated.
Heating by immersion heaters.
Temperature range up to 900C.
Controls temperature within an accuracy of ±1^°C by microprocessor based digital temperature indicator cum controller.
Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
Shaking mechanism comprises of variable speed motor fixed on the left side and coupled to the oscillating tray riding on ball rollers oscillated through a geared variable speed motor. Tray shakes in linearly to and fro is with Minimum Noise and Vibration.
Shaking motion of tray is controlled by speed regulator fitted at the panel.
Fitted with PMDC heavy duty motor for continuous operation.
Shaking tray can either hold test tubes or Erlenmeyer flasks of 25 ml or 50ml or 100 ml or 250 ml or 1000ml, as ordered by the user
Supplied complete with one shaking tray as a standard accessory.
Supplied with GABLED DOME LID for dripping of all condensate into the bath inside periphery.
Fitted with THYRISTOR BASED DC DRIVE for speed range from 40 to 140 cycles per minute
To work on 220/230V AC supply.

Model No.	WBM 1	WBM 2
Internal Dimensions (L X W X D)	275 x 275 x 150mm	400 x 300 x 150mm
Approx. Capacity	12 Ltr.	18 Ltr.
Approx. Heating Load	2.0 KW	2.5 KW
Top Lid	GABLED DOME LID made of Stainless Steel
Temperature	Controlled by microprocessor based digital temperature indicator cum controller.
Temperature Range	From ambient to 90^°C
Temperature Accuracy	± 1^°C.
Temperature Display	Digital LED with set value (SV) & process value (PV).
Temperature Sensor	RTD (Pt-100)
Shaking Speed	40 to 140 cycles/min.
Shaking Speed	Controlled by speed regulator
Shaking Tray	Can either hold test tubes or Erlenmeyer flasks of 25ml or 50 ml or 250 ml or 1000 ml as ordered by the users zero size image

Temperature control by	By profile (Micro Programmable) controller.
Spare Shaking Tray	With Lotus Clamp or Test Tube Rack
Speed Indication	By Digital RPM Indicator
Communication Port	with interface and data cable to download data to your PC

Applications same as of above but used where required (working temperature is below then ambient).
Temperature Range 50C to 900C.
Refrigeration is done by ISI Marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
