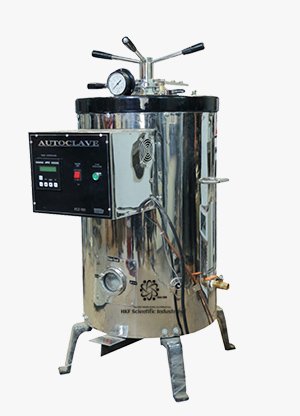

SALIENT FEATURES & CONSTRUCTION OF FULLY AUTOMATIC VERTICAL AUTOCLAVE
- Inner & Outer Chamber, constructed from S. S. 304 Grade
- Bucket / Basket Made of Stainless Steel
- Water Level Indicator
- Lid Closing by Radial Locking System
- Sealing of Lid by Neoprene Rubber Gasket
- Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve.
- Operating range from 15psi to 20psi pressure
- Sterilizing Temperature up to 1340C
- Tested up to 2.5 times of required Pressure
- Fully automatic models requiring no human intervention till a full sterilization cycle is over.
- Fitted with a (Programmable Logic Controller) LCD Display with respect to time and temperature.
- Enabling user automatic purging of stale air.
- Sterilizing hold time system for sterilizing period and cycle end.
- Automatic exhaust of pressure.
- Audio alarm/ buzzer is raised at the end of the cycle on.
- Voltage: 220 Volts AC (50 Hz)
| PARAMETERS | MODEL ACA – 1 | MODEL ACA – 2 | MODEL ACA – 3 | MODEL ACA – 4 | MODEL ACA – 5 |
| Inner Dimensions (Dia x Height) | 250x450mm | 300x500mm | 350x550mm | 450x600mm | 550x750mm |
| Inches Conversion | 10 x 18 | 12 x 20 | 14 x 22 | 18 x 24 | 22 x 30 |
| Capacity | 22 ltrs | 40 ltrs | 50 ltrs | 98 ltrs | 152 ltrs |
| Working Load | 2.0 KW | 2.0 KW | 3.0 KW | 4.0 KW | 6.0 KW |
| Gasket | Made of Neoprene Rubber | ||||
| Sterilizing pressure | 1.2 kgf / cm (15psi)at 121°c | ||||
| Pressure Gauge | 0-2.1 kgf / cm² (30 psi) | ||||
| Operating pressure | From 15 to 20psi (Adjustable) | ||||
| Inner Pressure Tank | Stainless Steel (SS-304) | ||||
| Top Lid | Mild Steel Plate lined with Stainless Steel from inside | ||||
| Basket | Made of Stainless Steel | ||||
| Lid Tightening | Radial Locking system worked by handle | ||||
| Lid Opening | Paddle lifting device | ||||
| Water Level Indicator | Fitted on the outer chamber | ||||
| Boiler – Hydraulically Tested | Upto +40 psi | ||||
| Accuracy | + 3 psi | ||||
| Controller (PLC Based) | µProcessor Based Fully Automatic Fuzzy Logic Control System. | ||||
| Display | 16×4 line Alphanumeric Digital LCD with backlet display with Set value (SV) and Process Value (PV) | ||||
| Timer (Auto Time Control) & Buzzer | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end. | ||||
| Safety Device | Spring Loaded Type | ||||
| Water Draining System | Hand Operated Valve | ||||
| Heating | BY ISI Marked Immersion Heaters | ||||
| Steam & Vacuum Release | By Valve | ||||
| Digital Pressure Controller | With electronic transducer and siphon. | ||||
| PLC Based Control System | Touch Screen (HMI) with respect to time and temperature programmable by user. | ||||
| Customized Programme | with inbuilt data recording in pen drive. Facility also available | ||||
| Power Supply | 220/230V AC, 50/60Hz | ||||
All the instruments can be designed with PLC Based Control Systems (as per customer requirement) with Touch Screen Display / Controller data storage in Pen Drive with Direct Thermal / Dot matrix Printer. All the instruments can be designed with digital control systems (pid based LCD Display 16 x 2) with optional RS-485 communication ports, cables, window based software with inbuilt data recording.
CONTROL PANEL AND SWITCHGEARS
- µProcessor based Controller with time and temperature settable by user.
- (Pt-100) sensor, for precise i monitoring.
- Low water level alarm and cut off for safety of heater.
- End of cycle buzzer.
