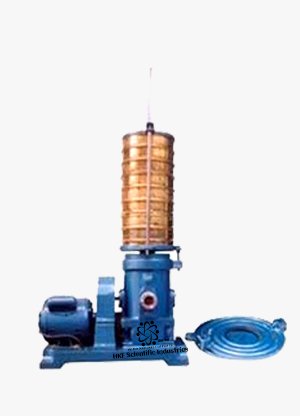

SALIENT FEATURES & CONSTRUCTION OF SIEVE SHAKER (GYRATORY)
- Heavy-duty floor model. The sieve table rotates in 45-degree direction, which allowed each square inch of the sieve analysis. The whole gear mechanism runs in oil bath. It is necessary to pour machine oil No. 40 up to level mark is driven by 1/4 H.P. Electric Motor through reduction gear.
- This Gyratory motion of the table there is an upward and downward movement but is inclined from the vertical axis and the direction or inclination charges progressively in clockwise direction having frequency of about 270 vibration per minutes Every part of the sieve is utilized by constant upward and downward movement. The whole gear mechanism runs in oil bath. Supplied with Timer but without test Sieves workable on Single Phase 220 / 230 volts A.C. supply.
CAN ACCOMODATE
- Sieves Up to 8 (200mm) dia x 2 (50mm) Height. Maximum 8 Nos. plus Upper Lid and Bottom Receiver.
- Sieves Up to 12 (300mm) dia x 2 (50mm) Height. Maximum 6 Nos. plus Upper Lid and Bottom Receiver.
ADDITIONAL ACCESSORIES
- Adaptor 12″ Dia to accommodate sieves of 12″ Dia.
